Current Position:PRODUCTS->>Lens Processing Machine->>Lensmeter Out-Side Reading

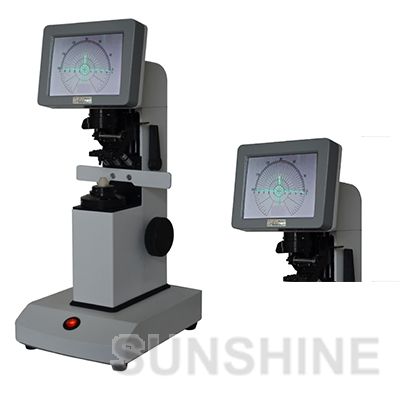

NJC-9


Specificacion of Lensmeter mod. NJC-9


•Model NJC-9 Lensmeter is used to measure the dioptres is spherical lens and cylinder lens, the axis of cylinder lens, the strength and the baseline direction of shuttle lens, it can also stamp the optical center of lens, the axis of cylinder lens and the base direction of shuttle lens.

•This lensmeter ( both when DC) has clear reading and graduations as well as high objective precision and reliabilities except that it can be operated easily and conveniently. In additional , it has the compensation lens to correct the optical point center. AU the lenses and the made glasses can be measured by it. Which therefore, is a required an ideal measuring instrument for glasses manufactures, glasses stores and ophthalmological hospitals.



Vertex Power

Range

+20diopterto - 20dioper

Step

  0.125 D

Prismatic Power

Range

15 prism diopter

Step

1 diopter

Cylindnical Axis

Range

0 to 180 degrees

Step

1 degrees

Lenses Accommodated

Diameter 20mm to 100mm

Brightness

200 cd/

Bulb

220V/110V——12V
