Current Position:PRODUCTS->>Lens Processing Machine->>Auto Lens Edger

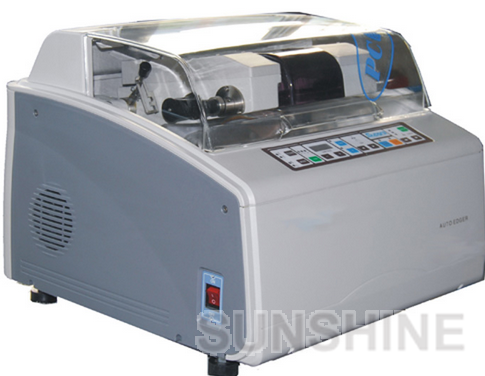

CLE-420

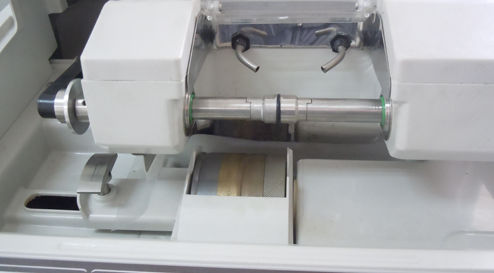

Grinding Wheels of CLE-420 with PC Bevel Polishing function

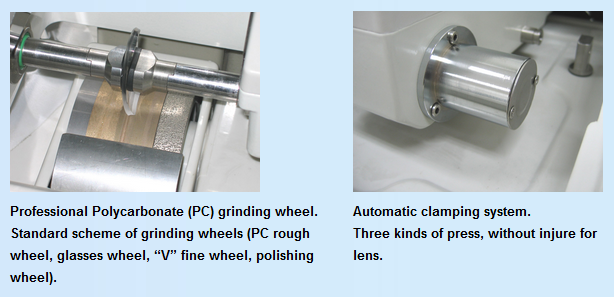

• Professional Polycarbonate (PC) grinding wheel.
Standard scheme of grinding wheels (PC rough wheel, glasses wheel, “V” fine wheel, polishing wheel).
Automatic computerizes the transformation of the water spring.
Automatic clamping system and three types of press, without injure for lens.
Automatic grinding procedure for PC lens, Microcomputer control for processing of PC Lens, Rough grinding: automatically stop supplying water and dry grinding start, Fine grinding: automatically supply water. Easy to operate, only need press"LENS" button to select PC OK when operate.
Can work with Plastic Lens, Glass Lens and Polycarbonate Lens.

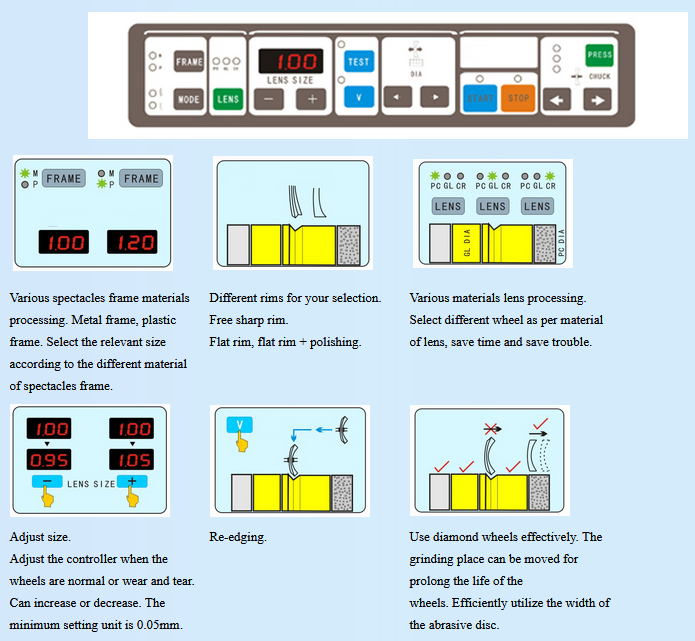

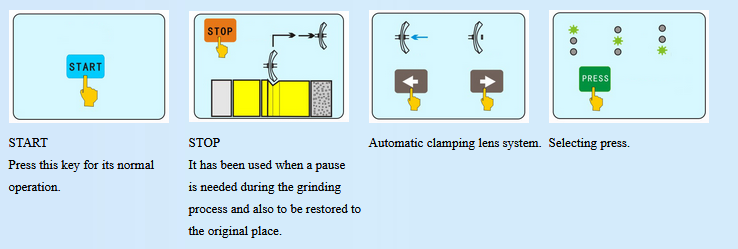

Operate Button of Auto Lens Edger CLE-420


Specification of Auto Lens Edger mod.CLE-420

technical parameter min:

Min22mm Max100mm

range of adjustable measurement:

-6.0mm~+6.0mm(0.05mmStep)

dimension of figure:

530(L)×500(W)×400(H)mm

weight:

50kg

Power:

220V±10% 50Hz

Power:

500W
