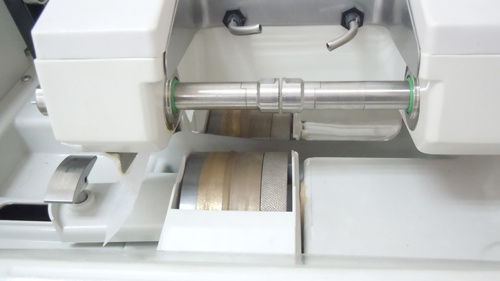

Grinding Wheels of CLE-400 without PC Bevel Polishing function

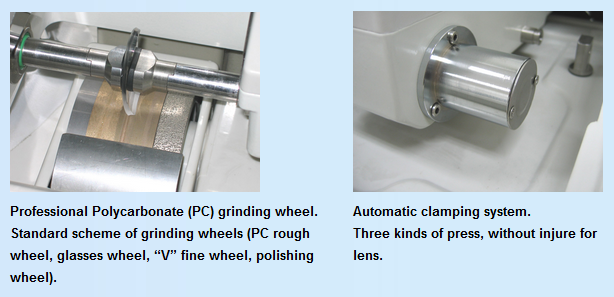

• Professional Polycarbonate (PC) grinding wheel.
• Standard scheme of grinding wheels (PC rough wheel, glasses wheel, polishing wheel).
• Automatic computerizes the transformation of the water spring.
• Automatic clamping system and three types of press, without injure for lens.
• Automatic
grinding procedure for PC lens, Microcomputer control for processing of
PC Lens, Rough grinding: automatically stop supplying water and dry
grinding start, Fine grinding: automatically supply water. Easy to
operate, only need press"LENS" button to select PC OK when operate.
• Can work with Plastic Lens, Glass Lens and Polycarbonate Lens.

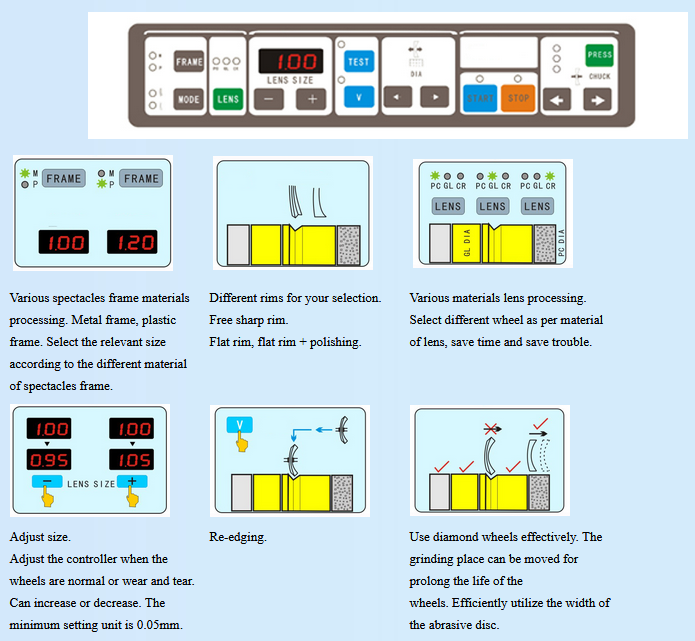

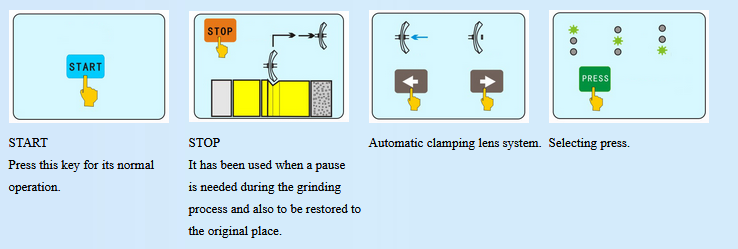

Operate Button of Auto Lens Edger CLE-400

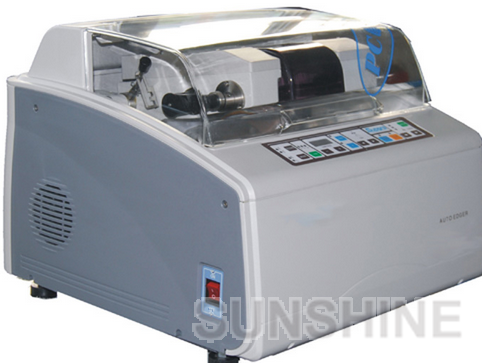

Specification of Auto Lens Edger mod.CLE-400
technical parameter min: | Min22mm Max100mm |
range of adjustable measurement: | -6.0mm～＋6.0mm（0.05mmStep） |
dimension of figure: | 530(L)×500(W)×400(H)mm |
weight: | 50kg |
Power: | 220V±10％ 50Hz |
Power: | 500W |
