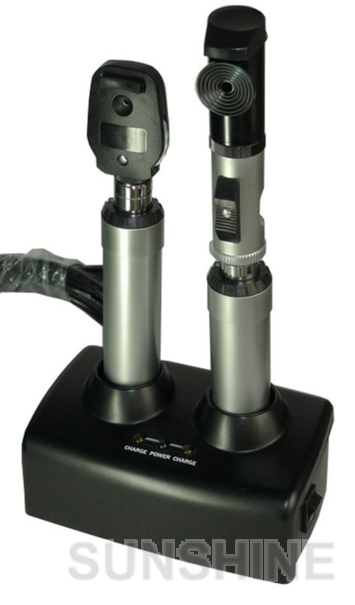

Streak Retinoscope-Ophthalmoscope mod.DYZ24B/11D
Mod. SYZ24B/11D, Mod. DYZ24B/11D
= All Specification of YZ24B + YZ11D
Rechargeable Streak Retinoscope mod. YZ-24B
Characteristics:
• The filament can be 360°rotated and upward and downward.
• Quickly and precisely measure the astigmatism axis.
• The light can be converged, radiated and paralleled.
• Continuously adjustable brightness.
• Convenient quick recharging.
• Anti-recharging and anti-discharging function protects the battery.
• Can also be connected with the head of ophthalmoscope.
Working Distance | 0.67m |
Streak | 3mm-20mm |
Illumination Source | 3.5V/2.8W halogen bulb |
Streak Rotation | 360° |
Power(Main Body of Ophthalmoscope) | Li+ battery pack DC:3.7V |
YZ11D Rechargeable OPHTHALMOSCOPE
• The observed images are clear and upward on the fundus.
• Halogen bulb with even illumination can show the true colors of ocular issues.
• Smart Design, convenient for mobile diagnosis.
• Equipped with special charger, quick and convenient recharging, against over recharging.
• Zoom illumination adjustment.
Illumination Form | Big Spot, Small Spot, Slit, Net, Red Free |
Diameter of Filter | 0.2mm-0.4mm |
Illumination Brightness | ≥80lx |
Diopter Compensation | 0±1±2±3±4±5±6±8±10±12±16±20-25-35D |
Illumination Source | 3.5V/2.8W， Halogen Bulb |
Power | Lit Battery Pack 3.7V, Rechargeable |
