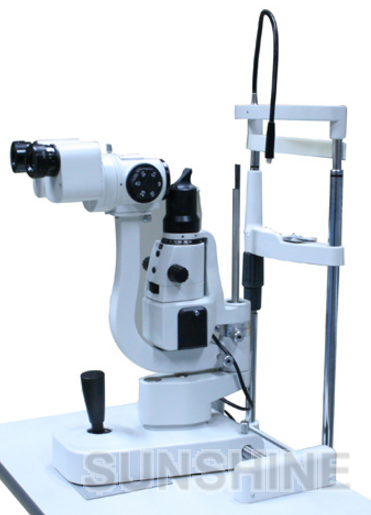

Slit Lamp YZ5X1 : 5 Drum Magnifications
Characteristics：
• Galilean stereoscopic microscope provides the practitioner with unsurpassed image clarity and sharpness and avoid double images.
• Five-step drum magnifications.
• Optional accessories: Teaching Tube and CCD camera.
Microscope Type | Galilean stereoscopic microscope |
Magnification | Five-step drum magnifications |
Eye Piece | 12.5X |
Magnification Ratio
(Field of View) | 6x(Æ33), 10x(Æ22.5), 16x(Æ14), 25x(Æ8.8), 40x(Æ5.5) |
Range of Pupil Distance | 55mm~75mm |
Adjustment of Diopter | -5D~+3D |
Slit Width | 0mm~14mm adjustable(slit is round when the slit width is 14mm) |
Slit Height | 1mm~14mm adjustable |
Slit Angle | 0°～180° adjustable |
Light Spot Diameter | Æ14, Æ9, Æ5.5, Æ0.3 |
Filter | Heat absorption, redfree, cobalt blue |
Illumination Bulb | 6V20W halogen bulb |
Maximal Illumination | ≥150000 Lx |
