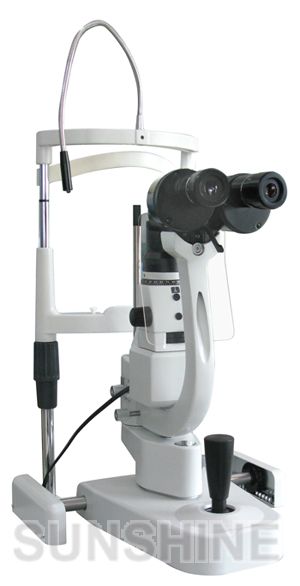

Slit Lamp YZ5X : 2 steps of objective lens rotation
Characteristics:
• Advanced converging stereoscopic microscope.
• 14mm Aperture provides broader and clearer field of view.
• Compact and flexible structure insures the convenient use.
Microscope Type | Converging stereoscopic microscope |
Magnification | Two-step magnifications |
Eye Piece | 10X |
Magnification Ratio
(Field of View) | 10x(Æ18) 16x(Æ14.5) |
Range of Pupil Distance | 54mm~80mm |
Adjustment of Diopter | ±6D |
Slit Width | 0mm~14mm adjustable(slit is round when the slit width is 14mm) |
Slit Height | 1mm~14mm adjustable |
Slit Angle | 0°～180° adjustable |
Light Spot Diameter | Æ14, Æ9, Æ5.5, Æ0.3 |
Filter | Heat absorption, redfree, cobalt blue |
Illumination Bulb | 6V/20W halogen bulb |
Maximal Illumination | ≥150000 Lx |
