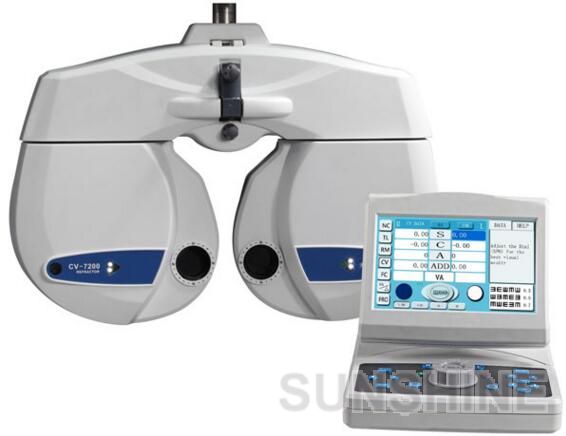

CCV-7200 7 Inch Touch Screen Digital Phoroptor
|
|
7.0-inch touch screen | Auto detachment |
|
|
Near vision test | Reverse side |
Features

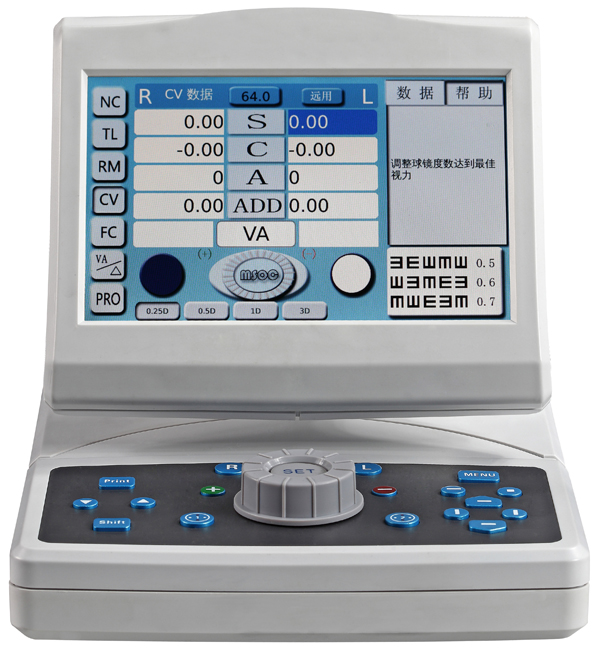

1. 7.0-inch color LCD touch screen
2. Stylish and compact design

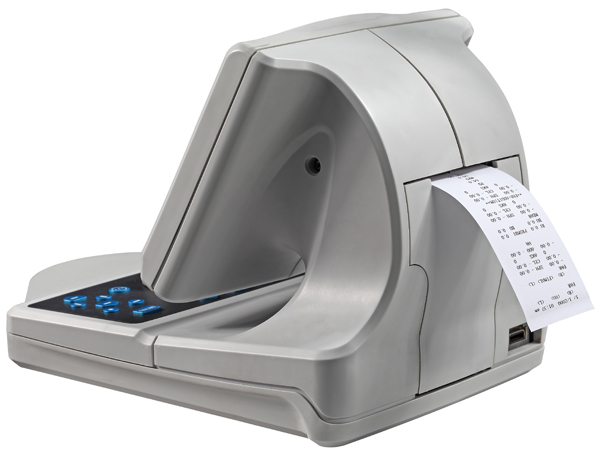

3. Auto detachment printer
4. Independent PD adjustment
5. Built-in LED for near vision illumination
6. Data transmission with Auto Refractometer mod. RM-9000 & RM-9200,
Autorefractometer/Keratometer mod. KR-9000 & KR-9200, and Auto Projector mod. ACP-1000 & ACP-1500,
and LCD Vision Chart mod. CCM-1800 & CCM-1900
Specifications
| Sphere | -19.00～+16.75D(0.25D/0.50D/1.00D/3.00D steps) |
| Cylinder | -6.00D～+6.00D 0.25D steps |
| Axis angle | 0～180°（1°/5°steps) |
| Pupil Distance | Distant range 52～80mm Close range 48～76mm 0.5/1mm steps |
| Rotary Prism | 0～20△ 0.1/0.5/1.0△ steps |
| Cross Cylinder Lens | ±0.25D |
| Retinoscope | +1.50D(67cm),+2.00D(50cm) |
| Auxiliary Lens | PH,Binoculus(￠=1.0mm) |
| RMV、RMH |
| RL(Right eye)、GL(Left eye) |
| Polaroid(Right eye 135°/45°，Left eye 45°/135°） |
| Prism(Right 3△BU,6△BU),(Left3△BD,10△BI) |
| Cross Cylinder Lens(±0.50D Axis=90°） |
| PD Lens |
| Phoropter Size | 365mm×280mm×110mm 3.8kg |
| Keyboard Size | 230mm×195mm×190mm 1.2kg |
| Power Box Size | 236mm×126mm×115mm 2.1kg |
| Power Supply | AC220V 50Hz or AC110V 60Hz,90W |
