Current Position:PRODUCTS->>Optometry Equipment ->>Autorefractometer-Keratometer

KR-9200

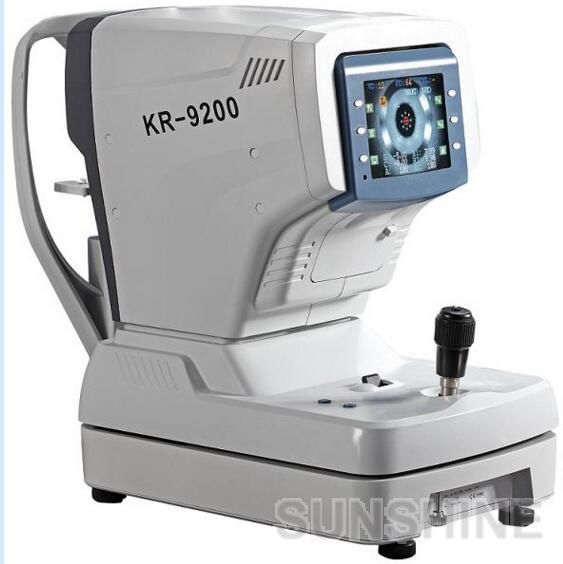

 KR-9200 Autorefractometer/Keratometer

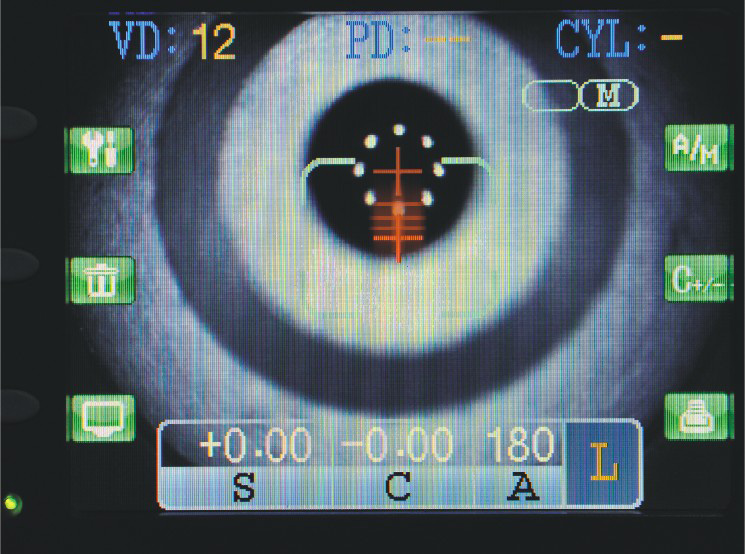

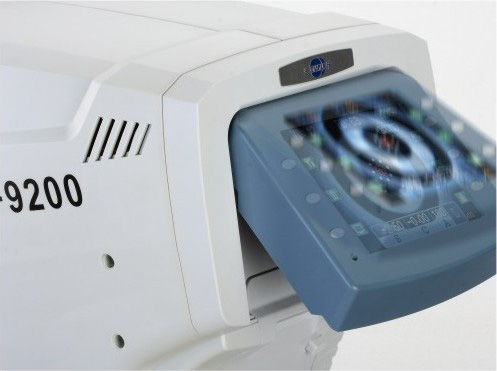

5.7inchs tiltable color LCD

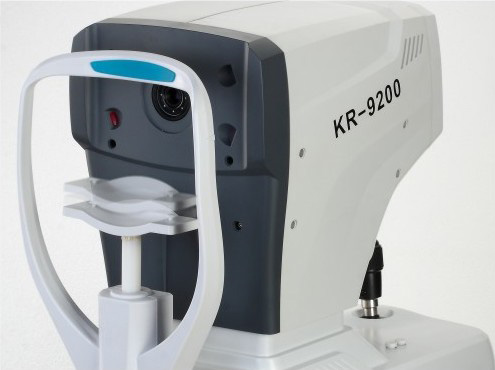

Electric up/down chinrest

Auto detachment



Automatic tracing focus(Y-AXIS direction)

Automatic mist target, effectively reduce the measurement error caused by adjusting

One key lock function, Convent and practical


Features:

·More fashion model, more intelligent control.

·Using the ARM processor and the latest domestic image processing,

the system is fast and the image is clear.

·Japan’s mature optical path system, humanized automatic mist measurement process,

to reduce the error caused by adjustment, more precise measurements.

·Light rack with integral casting, CNC machining, measuring system is more stable, good consistency.

·Electric up/down chin rest, automatic tracing focus(Y-AXIS direction).

·5.7inchs tiltable color LCD screen.

·Data transmission with Digital Phoroptor mod. CCV-7200, improved efficiency of online.



Specification:


Refractive measurementVertex Distance0.0,12.0,13.75,15.0mm
Sphere-20.00~+20.00D(0.12/0.25D step)
Cylinder0.00~±10.00D(0.12/0.25D step)
Axis1°~180°(1°step)
Pupil Distance30~85mm
Min.pupil diameter measurable¢2.0mm
TargetAutomatic fogging target
Corneal curvature measurementRadius of curvature5~10mm(0.01mm step)
Corneal Refraction30.00~67.00D(0.12/0.25D step)
Corneal Astigmatism0.00~-15.00D(0.12/0.25D step)
Angel of corneal1°~180°(1°step)
Corneal diameter2.0~12.00mm
Hardware specificationMonitor5.7 inch Color LCD

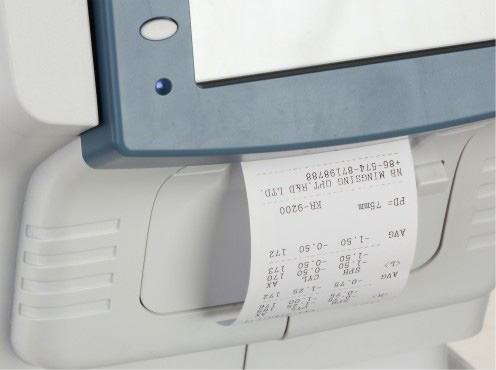

PrinterFast thermal printer
Power saving functionOFF,5/15 mins(selectable)
Power supplyAC100-240V,50/60Hz, 50W
Dimensions/weight288(W)*500(D)*480(H)mm/14.5kg
