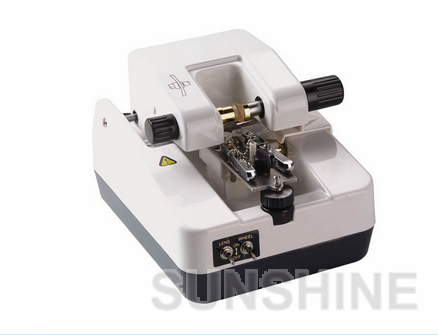

Specification of Lens Grooving Machine NHC-800
• Three types of grooving avaibable;center grooving.
• Front-curve grooving & rear-curve grooving.
• Depth & location of groove easily & accurately adjusted.
• Lenses of glass;polycarbonate,plastices and CR39 all acceptable.
Specifications | Groove Depth | Groove Width | Lens Thickness Acceptable | Lens Diameter Acceptable |
0.07mm | 0.6mm | 2-11mm | 28-70mm |
Dimensions(L*W*H) | Net Weight | Power Requirement |
270*210*150mm | 2.7KGS | 100-120V/60HZ AC or 200-240V/50Hz AC 90W |
