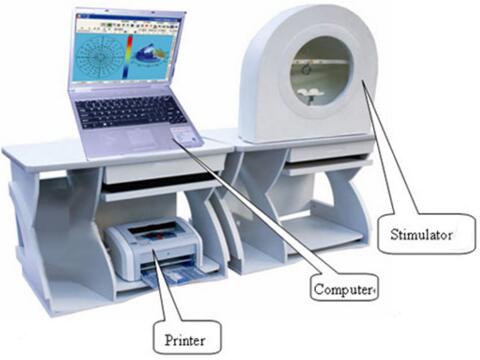

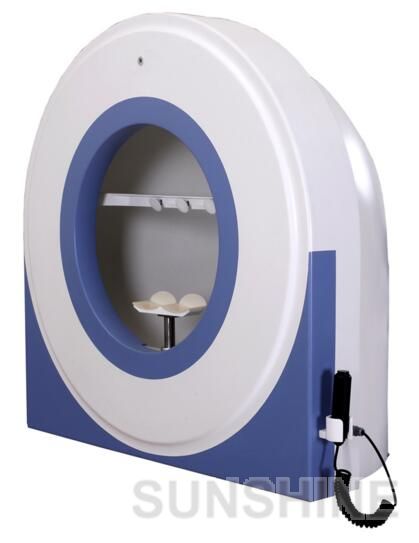

Stimulator Screen

Hemisphercal bowl, radius 30cm integrated

Stimulus source

Light Emitting diode

Stimulus Size

Goldmann III

Stimulus Intensity

≤10000asb

Stimulus Duration

Adjustable 0.2 to 2 Seconds

Stimulus color

Yellow; Red

Stimulus step

TOTAL 27, STEP 1

Minimum Inter-stimulus
delay

Adjustable 0.2 to 2 seconds

Background Illumination

4 asb

Lens Holder diameter

35mm (optional)

Stimulus Points

144(0-60D),72 (0-30D), 61(0-10D red), 114 (Blind spot)

Chin-rest moving ranging

Vertical 70mm, horizontal 90m

Fixation Method

Automatic monitoring with two options.
Available blind spot method, Eye tracking method.
In both methods, fixation errors are to be immediately announced by visual and audible warnings.
The standard video camera should provide visual of the patient’s eye for additional monitoring.

Test Range

Default test (0-60D), Yellow spot test (central 0-10D), Central 0-30D test, Quadrant test, Peripheral test (60-90D), Blind spot test, Custom Test
