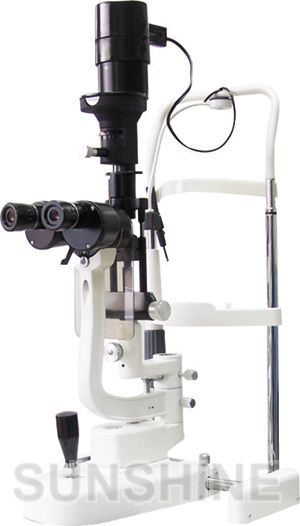

YZ 5J Slit Lamp:
•The optical lens is made of Germanic material.
•All the lens are processed with the multiplayer coating against reflection, damp and mildew.
•Two magnifications of 10x, 16x for choice.
Specifications:
| Microscope Type | Converging Stereoscope |
Magnification | Two-step magnifications |
Eye piece | 10x |
Total Magnification and field of View(mm) | 10x(Φ18),16x(Φ14.5) |
Adjustable Range of Pupil Distance(mm) | 55~82 |
Adjustable Diopter | ±6D |
Slit Width(mm) | 0-9 adjustable |
Slit Height(mm) | 1~8 adjustable |
Slit Angle | 0~180° |
Slit Inclination | 0° |
Light Spot Diameter (mm) | Φ9、Φ8、Φ5、Φ3、Φ2、Φ1、Φ0.2(mm) |
Filter | heat absorption , grey ,red-free , cobalt blue |
Illumination Bulb | 12V / 30W halogen bulb |
