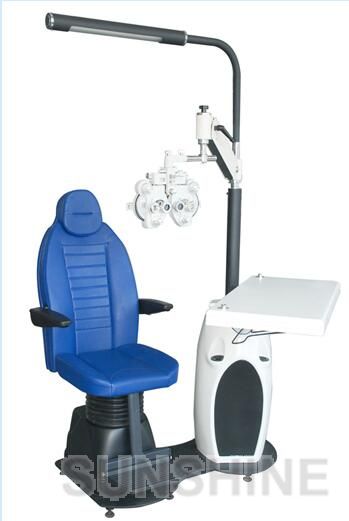

Complex Table mod. CTR-510C
•Table instrument power supply voltage selectable, 3V, 6V, 9V, 12V, and 24V (50W)
•Auxiliary 110V/220V output under table
| Mechanical Parameters |
| Up/Down angle of swing arm: | ±30° |
| Table size: | 840mm×405mm |
| Table rotational angle: | 90° |
| Table sliding movement: | 330mm |
| Angle of rotation for chair: | ±60° |
| Lifting height for chair: | 150~200mm |
| Loading for chair: | 70~150kgs |
| Lifting height for pillow: | ＋150mm |
| Backrest obliquity: | 90°~135°or 140° |
| Electrical Parameters |
| Input voltage: | 110V/220V AC 50Hz~60Hz |
| Engine power: | 55W 24V DC |
| Light luminaire: | 40W 110V/220V AV |
| Fuse: | 5A 250V AC |
| Power without load: | 1W |
| Pressure test: | 2KV |
| Main wire: | 10A 250V |
| Working mode: | S1 |
| Working temperature: | －30º~＋50º |
| Relative humidity: | less than 90% |
| Force of pressing key: | 1~5N |
| Cooling mode: | Nature cooling |
| Installation Dimension |
| Figure size: | 1100mm×1000mm×2110mm |
| Weight: | 125kgs |
