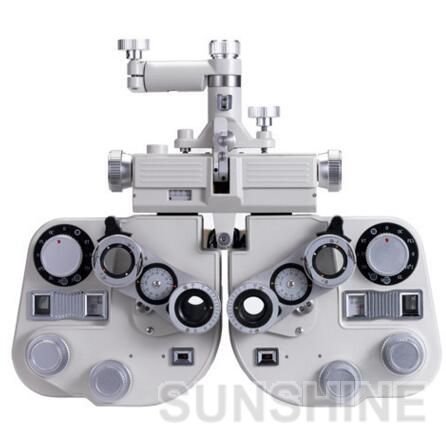

Specifications of Phoroptor mod. CVT-6E

(A) Measuring range:

(1) SPH: 0.00D～-19.00D(-0.25D)steps

               +0.25D～+16.75D(+0.25D)steps

(2) CYL: 0.00D～-6.00D(-0.25D)steps

               (with additional lens of-2.00D,

               the CYL power can be up to -8.00D)

(3) AXIS: 0°～180°

(4) P.D: 50mm～78mm (in 1mm steps)

(B) Auxiliary lenses:

(1) Occluder

(2) P.D Check

(3) Pinhole plate

(4) Polarizing: right eye 135°,left eye 45°

(5) Red/Green filter: right eye red,left eye green

(6) Moddx rod: right eye red horizontal/vertical,

                          left eye white horizontal/vertical

(7) Dissolution prism: rihgt eye: 6△B/U,

                                        left eye: 10△B/I

(8) Fixed cross cylinder lens: ±0.50D

(9) Retinscope: +1.50D

(C) Rotary cross cylinder lens: ±0.25D

(D) Rotary prism: 0△～20△ (1△steps)

(E) Dimention & Weight:

(1) Mian Body: 330(W)×400(D)×100(H)mm

(2) Carton: 430(W)×530(D)×200(H)mm

(3) N.W: 5.1KG

(4) G.W: 7.5KG
