5.7inchs tiltable color LCD Electric up/down chin rest
Automatic tracing focus(Y-AXIS direction) Automatic mist target,effectively reduce the
measurement error caused by adjusting
Features
·More fashion model, more intelligent control
·Using the ARM processor and the latest domestic image processing,
the system is fast and the image is clear.
·Japan’s mature optical path system, humanized automatic mist measurement process,
to reduce the error caused by adjustment, more precise measurements
·Light rack with integral casting, CNC machining, measuring system is more stable, good consistency

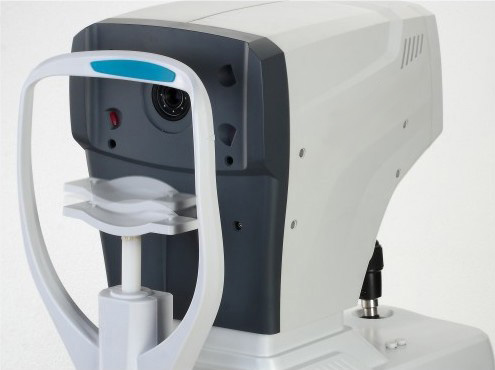

·Electric up/down chin rest, automatic tracing focus(Y-AXIS direction)

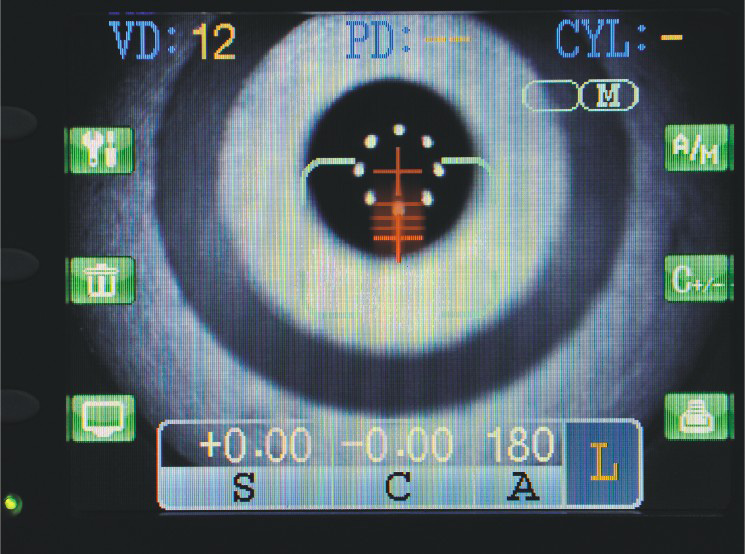

·5.7inchs tiltable color LCD screen
·Data transmission with Digital Phoroptor CV-7200, improved efficiency of online
·Data transmission with Digital Phoroptor CV-7600 using Bluetooth System
Specification
| Refractive measurement | Vertex Distance | 0.0,12.0,13.75,15.0mm |
| Sphere | -20.00～+20.00D(0.12/0.25D step) |
| Cylinder | 0.00～±10.00D(0.12/0.25D step) |
| Axis | 1°～180°（1°step） |
| Pupil Distance | 30～85mm |
| Min.pupil diameter measurable | ￠2.0mm |
| Target | Automatic fogging target |
| Hardware specification | Monitor | 5.7 inch Color LCD |
| Printer | Fast thermal printer |
| Power saving function | OFF,5/15 mins(selectable) |
| Power supply | AC100-240V,50/60Hz, 50W |
| Dimensions/weight | 288(W)*500(D)*480(H)mm/14.5kg |
